Crafting Aerodynamics: The Design and Fabrication of Wind Tunnel Clay Models for Passenger Cars

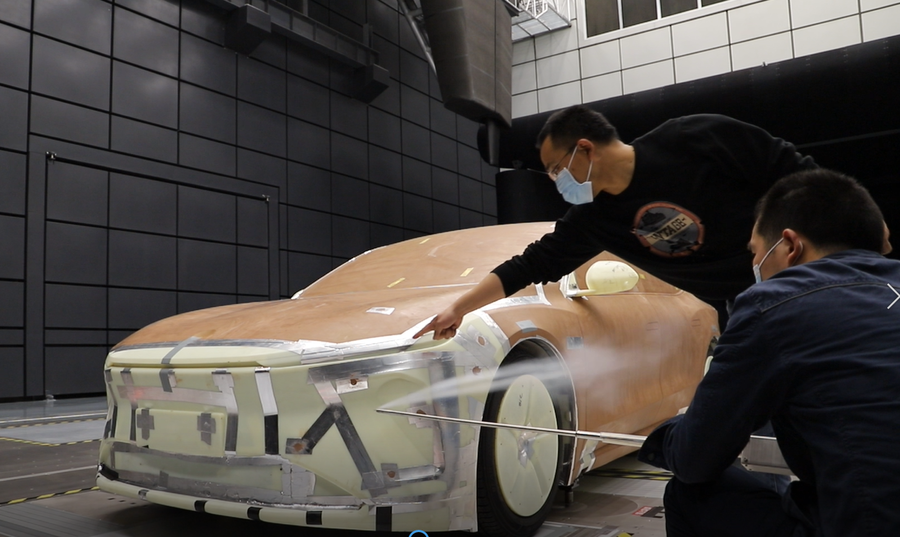

As automotive competition in China intensifies and customer expectations rise, design validation tools are evolving fast. Among them, full-scale clay models used in wind tunnel testing have emerged as a critical asset for optimizing vehicle aerodynamics and acoustics. These models allow development teams to visualize, refine, and verify design proposals with scientific precision—all before a single production tool is made.
This article documents the process of designing and fabricating a full-size wind tunnel clay model developed during the X95 project, revealing the techniques and lessons learned from concept to completion.
